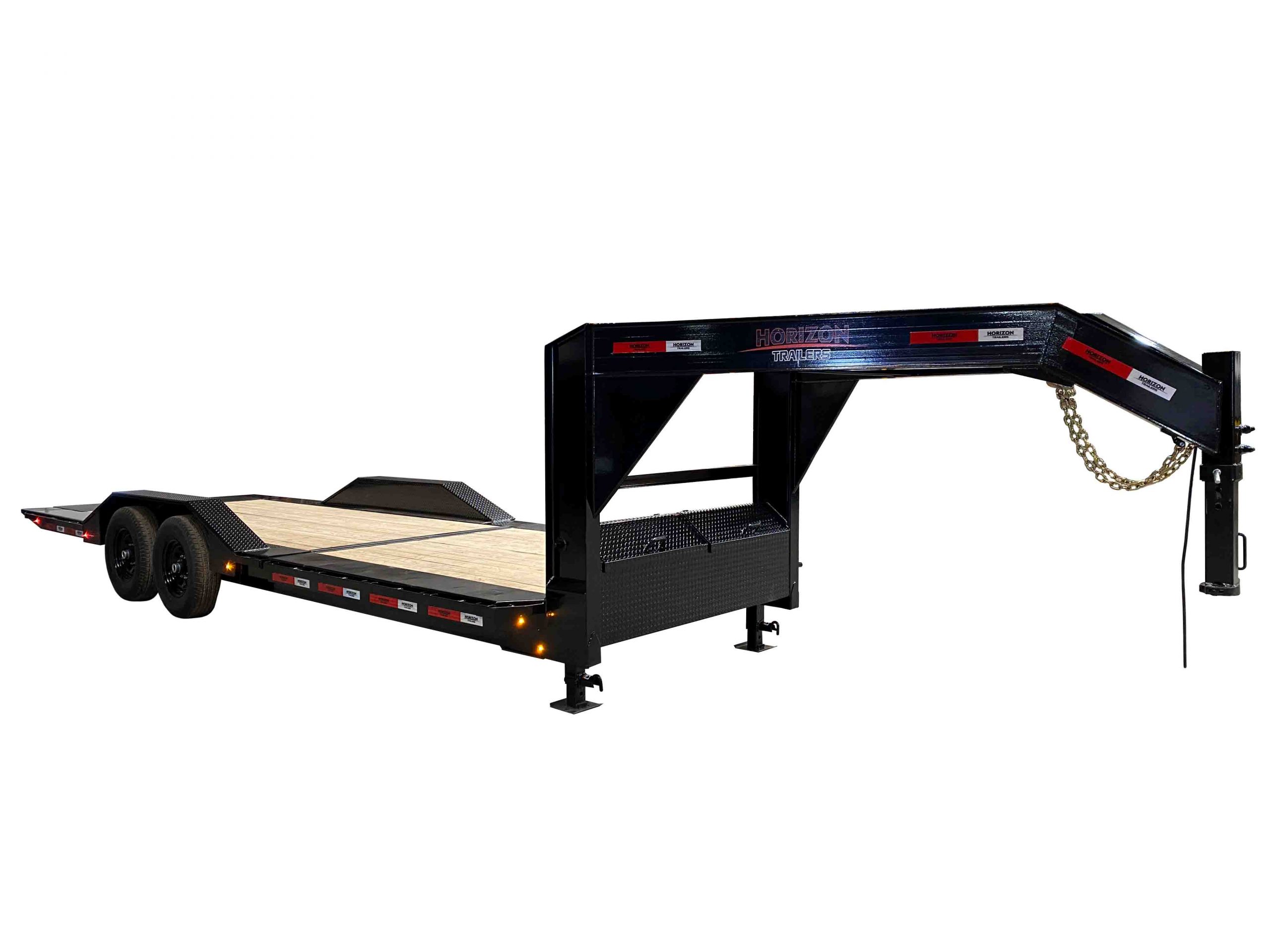

Horizon Tilt Trailer (TW)
Horizon Tilt Trailer (TW)
| Lengths | 20', 22', 24' |
| Deck Width | 102" |
| Deck Heigth | 21" |
| GVWR | 14,000 lbs. |
| GAWR | 7,000 lbs. x (2) G.A.W.R. |
| Type | Powdercoat |
| Prep | Sandblast |
| Colors | Black, Grey, Red, Orange, White, Lime Green, Cat Yellow |
| Axle Warranty | 11 Year Lippert Axle Warranty |
| Trailer Warranty | Three (3) Year Frame/One (1) Year Limited Warranty |
|
|
| Gooseneck | Ram Coupler 2-5/16" (25,000 lb) |
| Bumper Pull | Ram Coupler 2-5/16" (14,500 lb) |
|
|
| Toolbox Gooseneck | Lockable Toolbox |
|
|
| Type | 6" I beam (8.2 lbs/ft) |
| Lenght (Bumper Pull) | 48" |
| Length (Gooseneck) | 98" |
| Saftey Chains | 3/8" Grade 70 Safety Chain w/Clevis hook (2 each) |
| Breakaway System | Electric Breakaway kit |
| Reflective | 3M Dot Compliant Reflective Tape |
|
|
| Type | Channel Frame |
|
Size |
6" |
|
|
| Type | Channel Frame |
| Crossmembers | 3" C-Channel (3.50 lbs/ft) |
| Spacing | 16" |
| Front Jack (Gooseneck) | Ram 1 x (10,000 lbs) |
| Fron Jack (Bumper Pull) | Ram 1 x (10,000 lbs) |
|
|
| Wiring Harness | All-Weather Wiring Harness (7-Way RV) |
|
|
| Side Markers | DOT Approved Tecniq LED Ligths |
|
|
| System | Hydraulic - Cushioned Gravity tilt |
|
|
| Cylinder | 3" x 16" Cylinder |
|
|
| Angle | 11° |
|
|
| Flooring | 2" Treated Pine Lumber Deck |
| Heigth | 21" |
| Tilt Angle | 11° |
| Deck Width | 102" Wide Tiltable Deck |
| D-rings | (2) Rear D-rings |
|
|
| Side Rail | 2" Rubrail With Pipe Lumber Deck |
| Stake Pockets | 3-5/8" x 1-1/2" (ID) Stake Pockets |
| Fenders | 9" x 72" Steel Fenders |
|
|
| Deck | 4' Stationary Deck |
| Tail | 16' Tilt Deck |
|
|
| Type | Radial Tires |
| Size | ST235/80R16 |
| Ply | 10 Ply |
| Raiting | 3,520 lbs. |
| Rims | 16" Black Wheels |
| Spare Tire | ST235/80R16 10 Ply Spare Tire & Mount |
|
|
| Axle Type | Torsion |
| Axle Count | 2 |
| Axle Raiting | 7,000 lbs |
| Brakes | Electric |
| Suspension Type | Lippert Torsion Suspension |
| Axle Warranty | 11 Year Lipperty Axle Warranty |
Contact for Pricing and Availability
